Gallery¶

Every image on this site — this page included — is rendered when the documentation is built, from the spec printed underneath it. Nothing here is a screenshot, so nothing here can drift from what the code actually draws.

The art comes from examples/pes/, the demo project in the repository. It ships with the source, never with the package: the engine itself contains no art at all.

A page¶

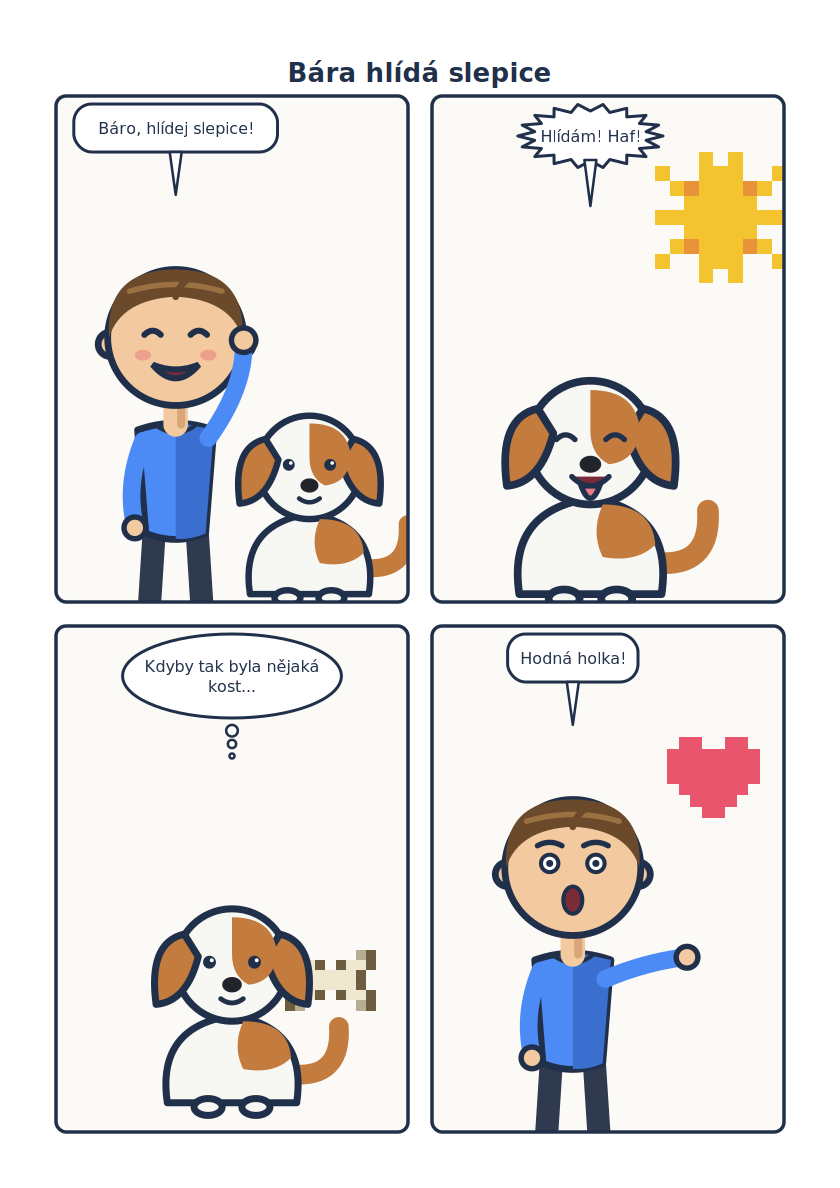

A four-panel A4 comic page: Tom asks Bára to watch the chickens — `examples/pes/pages/slepice.yaml` — a 2 × 2 A4 page, no scenes, three pixel sprites, all three bubble kinds.

title: "Bára hlídá slepice"
page: A4
px_per_mm: 4
margin_mm: 14
gutter_mm: 6
library: "../characters"
pixel_dir: "../pixel"

rows:
  - height: 1.0
    panels:
      - actors:
          - {char: tom, face: happy, arms: wave, x: 0.34, y: 0.66, scale: 0.86}
          - {char: bara, face: neutral, x: 0.72, y: 0.78, scale: 0.46}
        bubbles:
          - text: "Báro, hlídej slepice!"
            kind: speech
            speaker: tom
      - actors:
          - {char: bara, face: happy, x: 0.45, y: 0.74, scale: 0.55}
        pixel:
          - {art: sun, x: 0.82, y: 0.24, scale: 0.26}
        bubbles:
          - text: "Hlídám! Haf!"
            kind: shout
            speaker: bara

  - height: 1.0
    panels:
      - actors:
          - {char: bara, face: neutral, x: 0.5, y: 0.72, scale: 0.5}
        pixel:
          - {art: bone, x: 0.78, y: 0.7, scale: 0.12}
        bubbles:
          - text: "Kdyby tak byla nějaká kost..."
            kind: thought
            speaker: bara
      - actors:
          - {char: tom, face: surprised, arms: point, x: 0.4, y: 0.66, scale: 0.86}
        pixel:
          - {art: heart, x: 0.8, y: 0.3, scale: 0.16}
        bubbles:
          - text: "Hodná holka!"
            kind: speech
            speaker: tom

cmf render examples/pes/pages/slepice.yaml -o slepice.png

A page with scene backgrounds¶

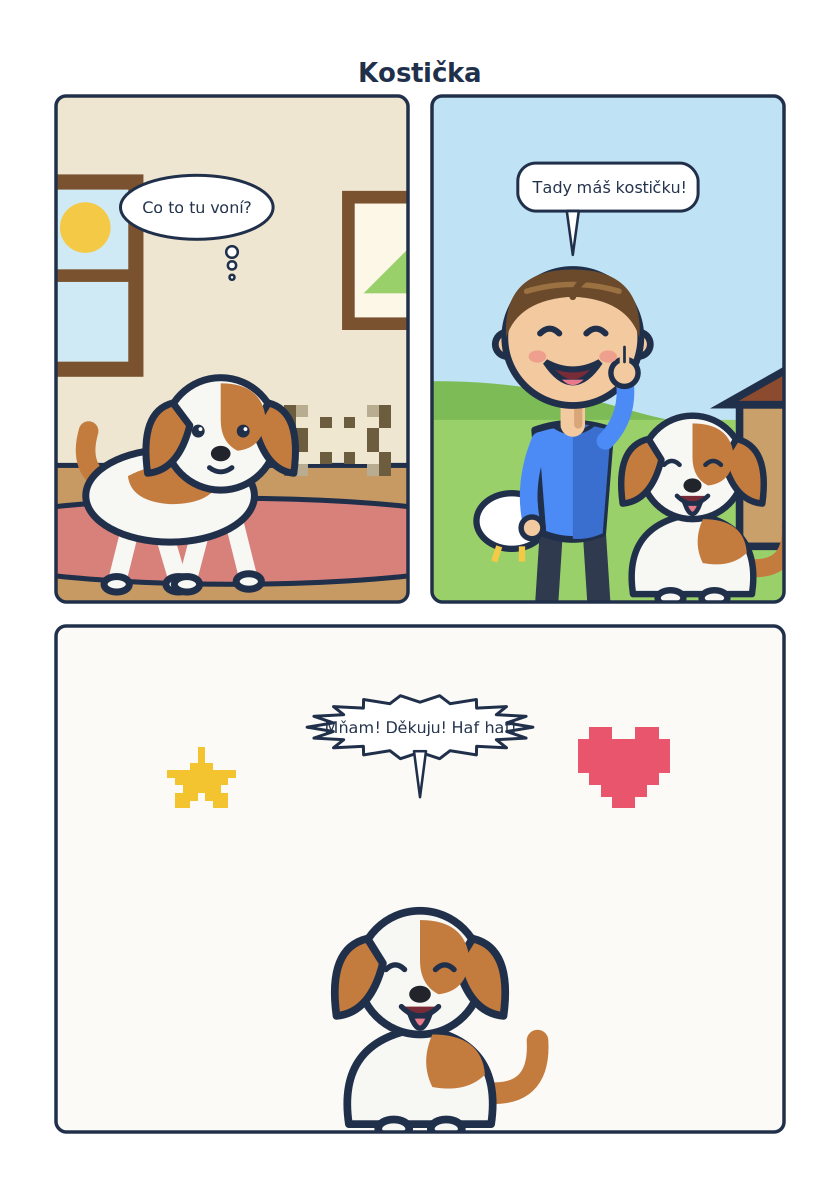

A three-panel page with illustrated backgrounds — `examples/pes/pages/kosticka.yaml` — scenes (`pokoj`, `dvur`), pixel art, and manually placed bubbles.

title: "Kostička"
page: A4
px_per_mm: 4
margin_mm: 14
gutter_mm: 6
library: "../characters"
scenes_dir: "../scenes"
pixel_dir: "../pixel"

rows:
  - height: 1.0
    panels:
      - scene: pokoj
        actors:
          - {char: bara, pose: walk, face: neutral, x: 0.42, y: 0.74, scale: 0.5}
        pixel:
          - {art: bone, x: 0.8, y: 0.68, scale: 0.14}
        bubbles:
          - text: "Co to tu voní?"
            kind: thought
            x: 0.4
            y: 0.22
            to: [0.5, 0.55]
      - scene: {name: dvur, weather: clear}
        actors:
          - {char: tom, face: laugh, arms: thumbsup, x: 0.4, y: 0.66, scale: 0.86}
          - {char: bara, face: happy, x: 0.74, y: 0.78, scale: 0.46}
        bubbles:
          - text: "Tady máš kostičku!"
            kind: speech
            x: 0.5
            y: 0.18
            to: [0.4, 0.42]

  - height: 1.0
    panels:
      - actors:
          - {char: bara, face: happy, x: 0.5, y: 0.74, scale: 0.55}
        pixel:
          - {art: heart, x: 0.78, y: 0.28, scale: 0.16}
          - {art: star, x: 0.2, y: 0.3, scale: 0.12}
        bubbles:
          - text: "Mňam! Děkuju! Haf haf!"
            kind: shout
            x: 0.5
            y: 0.2
            to: [0.5, 0.5]

One panel of it¶

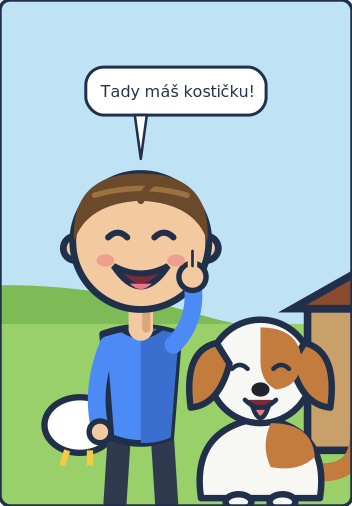

A single panel: Tom and Bára in the farmyard — `cmf panel examples/pes/pages/kosticka.yaml --row 0 --col 1`

A standalone illustration¶

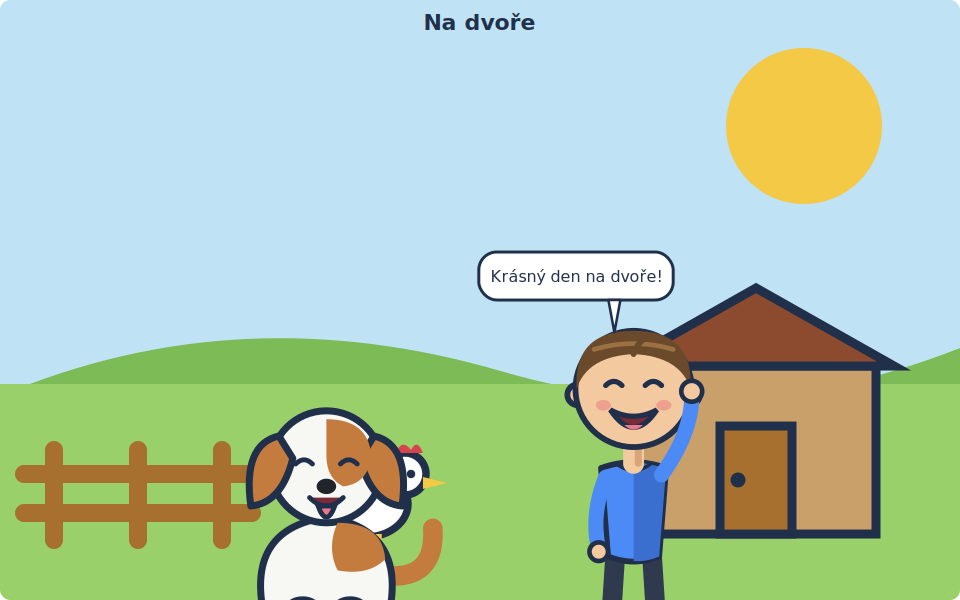

A wide farmyard illustration with Tom waving and Bára beside him — `examples/pes/pages/dvur-scene.yaml` — one background filling the canvas. Rendered with `cmf scene`.

# Standalone illustration: a single scene filling the canvas, no comic grid.
#   uv run comicforge scene examples/pes/pages/dvur-scene.yaml -o dvur.png
title: "Na dvoře"
type: scene
scene:
  name: dvur
  weather: clear
scale: 3
library: "../characters"
scenes_dir: "../scenes"

actors:
  - {char: bara, face: happy, x: 0.34, y: 0.82, scale: 0.42}
  - {char: tom, face: laugh, arms: wave, x: 0.66, y: 0.78, scale: 0.62}

bubbles:
  - text: "Krásný den na dvoře!"
    kind: speech
    x: 0.6
    y: 0.46
    to: [0.64, 0.62]

A strip, with everything at once¶

A three-panel strip with a title, captions, scenes, sprites and all three bubble kinds — Title, page-wide frame and lettering, two scenes, captions, pixel sprites, three bubble kinds.

title: "Ztracená kostička"
title_style: {font_size: 22, color: "#21304a"}
page: [190, 95]              # a custom [width_mm, height_mm] — or A4 / A5 / letter
px_per_mm: 5
margin_mm: 8
gutter_mm: 5
library:    "../../examples/pes/characters"
scenes_dir: "../../examples/pes/scenes"
pixel_dir:  "../../examples/pes/pixel"
frame: {width: 3, radius: 8}
bubble_style: {font_size: 13, em: 0.95}

rows:
  - panels:
      - scene: pokoj
        caption: "Bára hledala celé odpoledne."
        actors:
          - {char: bara, pose: walk, face: neutral, x: 0.42, y: 0.68, scale: 0.48}
        bubbles:
          - {text: "Kde jenom je?", kind: thought, speaker: bara, max_chars: 12}

      - scene: {name: dvur, weather: clear}
        caption: "Tom ji našel u boudy."
        actors:
          - {char: tom,  face: happy, arms: point, x: 0.34, y: 0.64, scale: 0.76}
          - {char: bara, pose: sit, face: happy,   x: 0.76, y: 0.70, scale: 0.38}
        bubbles:
          - {text: "Tady!", kind: speech, speaker: tom}

      - caption: "Konec pátrání."
        actors:
          - {char: bara, pose: walk, face: happy, x: 0.5, y: 0.6, scale: 0.5}
        pixel:
          - {art: heart, x: 0.8, y: 0.28, scale: 0.2}
          - {art: bone,  x: 0.2, y: 0.32, scale: 0.18}
        bubbles:
          - {text: "Haf!", kind: shout, speaker: bara}

Contact sheets¶

Every variant of one slot, as a grid of panels — a useful thing to keep in a project of your own as art documentation that cannot go stale.

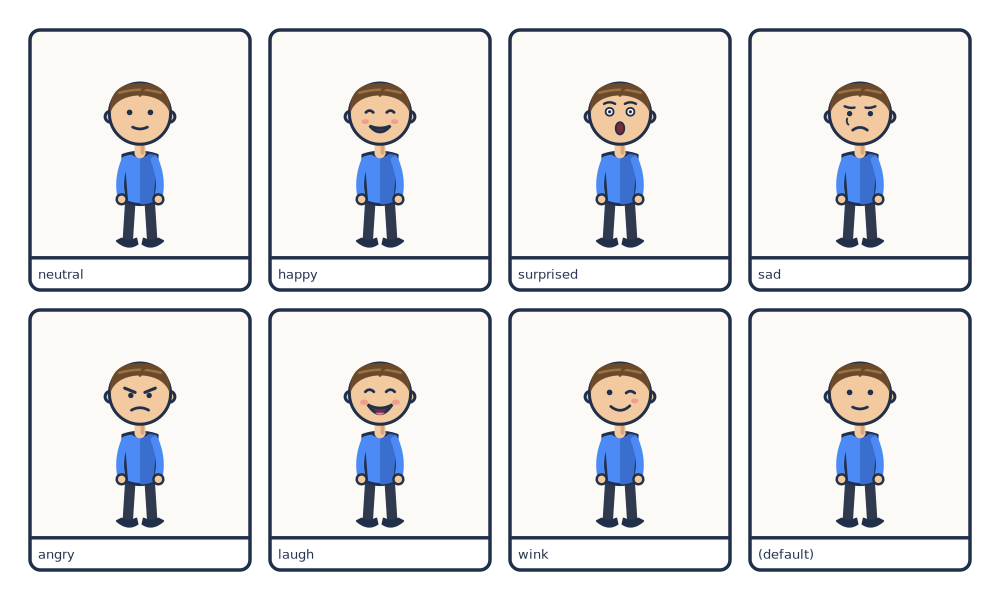

Tom's seven face variants — The `face` slot. The last panel omits `face:` and gets the default.

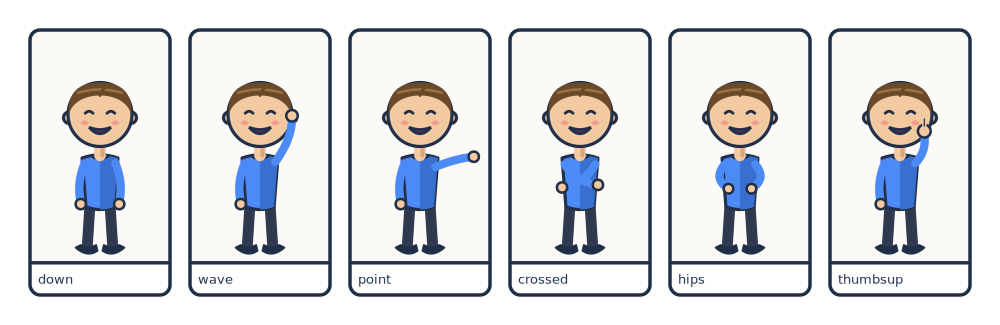

Tom's six arms variants — The `arms` slot, with `face: happy` held constant.

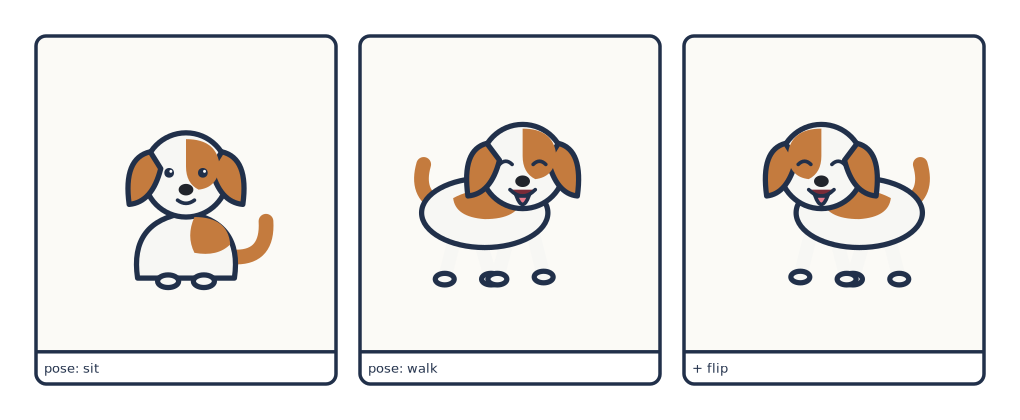

Bára sitting, walking and walking flipped — Two poses and a `flip`. The faces are shared files, re-registered onto each body by anchor.

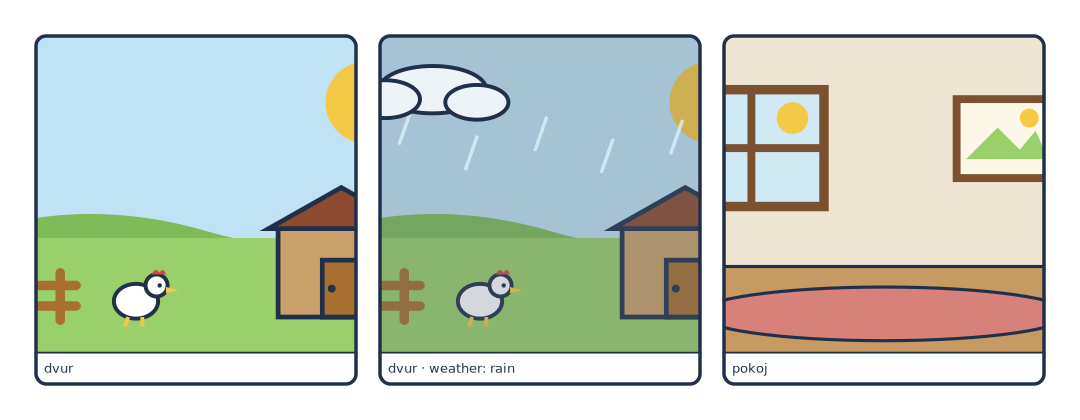

The dvur scene clear and raining, and the pokoj interior — A scene slot: one background, two weathers — plus a second scene with no slots.

Layout and lettering¶

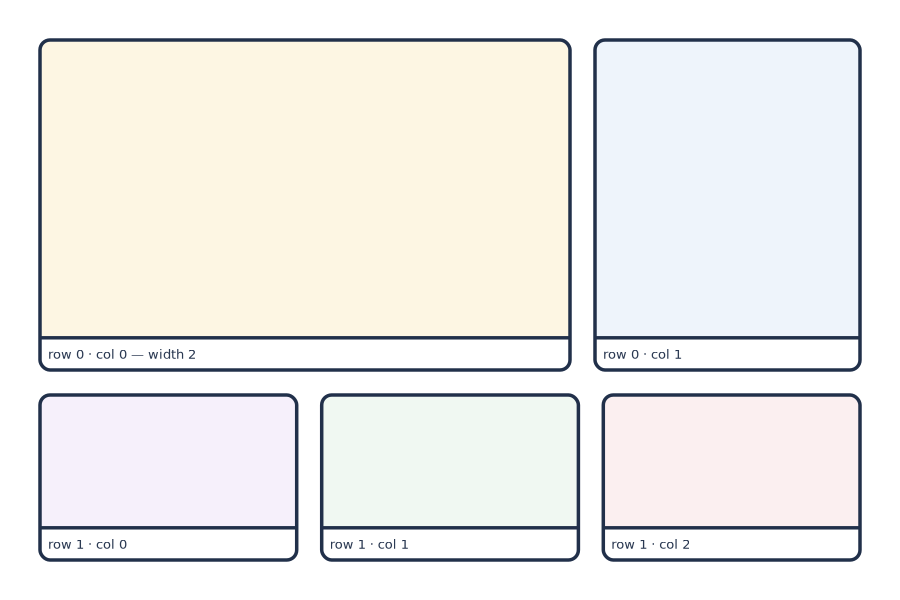

Two rows of panels with different relative widths and heights — Row `height` and panel `width` as relative weights.

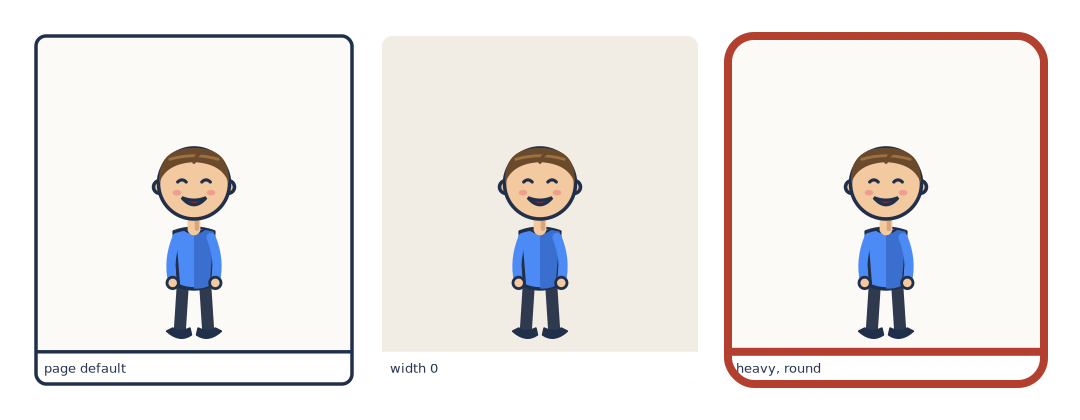

Three panels with different frame settings — Page-default frame, `width: 0`, and a heavy round red override.

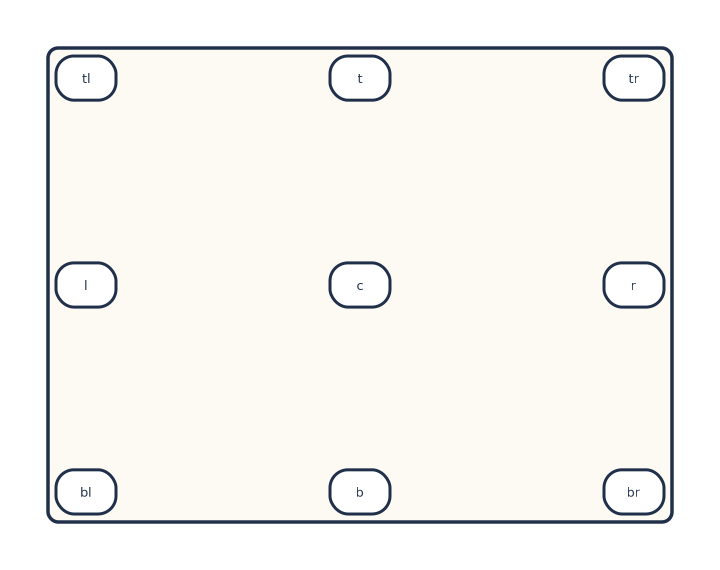

Bubbles at all nine anchor positions — The nine `at:` anchors. Each column keeps its own top and bottom stack.

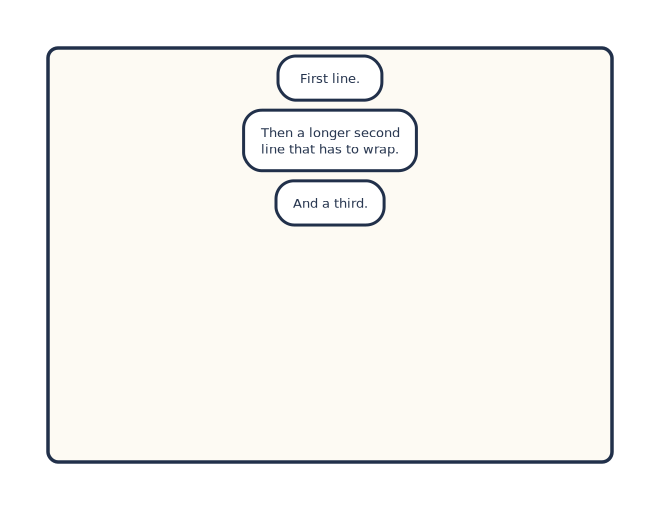

Three bubbles of different lengths stacked without overlapping — No coordinates at all — bubbles stack by their measured height.

Raster panels¶

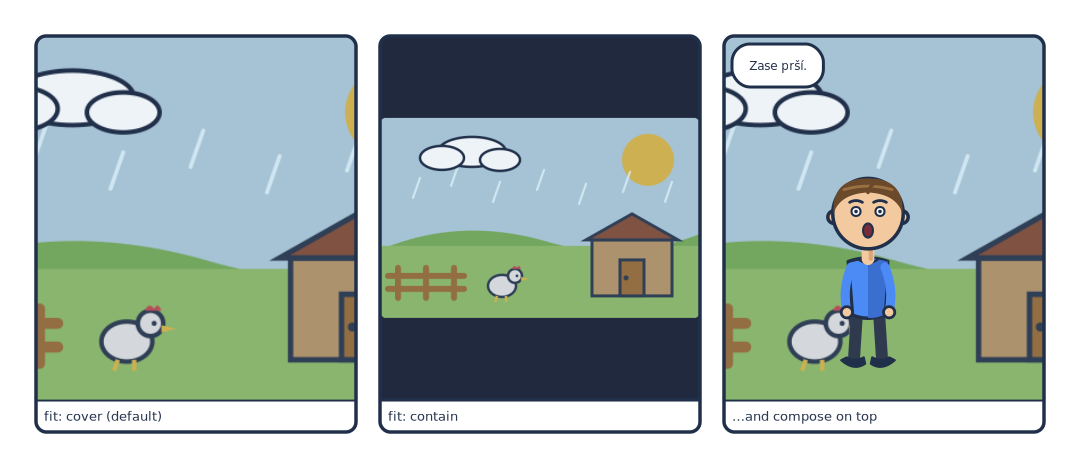

An image cover-cropped, letterboxed, and composed on — `fit: cover`, `fit: contain`, and an actor plus a bubble on top of a bitmap.

Render them yourself¶

git clone https://github.com/mojzis/comicforge && cd comicforge
uv sync
uv run cmf render examples/pes/pages/slepice.yaml   -o slepice.png
uv run cmf render examples/pes/pages/kosticka.yaml  -o kosticka.png
uv run cmf scene  examples/pes/pages/dvur-scene.yaml -o dvur.png
